Oil Cooler Full Kit for BRZ/FR-S/86/GR86

$1,002.00 $801.60

  • SKU: PSP-OIL-113
  • Quantities low - Order Soon!
Psp Oil 113 01 1
Psp Oil 113 02
Psp Oil 113 03
Psp Oil 113 04
Psp Oil 113 05
Psp Oil 003 05
Psp Oil 003 06
Psp Oil Xxx 01
Psp Oil Xxx 02

Oil Cooler Full Kit for BRZ/FR-S/86/GR86

$1,002.00 $801.60

  • SKU: PSP-OIL-113
  • Quantities low - Order Soon!
Select Vehicle
Qty
Add to Cart

Overview

Reduce engine oil temperatures, extend engine life, and keep your horsepower consistent with a PERRIN Oil Cooler for BRZ/FR-S/86/GR86.

Jump To

Why You Want This

In racing conditions engine oil temperature skyrockets. This causes decreased engine performance and reduces the oil's ability to properly lubricate. A well-designed engine oil cooling system like the PERRIN Oil Cooler Kit will help keep temperatures within the desired temperature range, thus maintaining performance and prolonging engine life. Most setups can see a drop of approximately 15°-20°C at 7000 RPM.

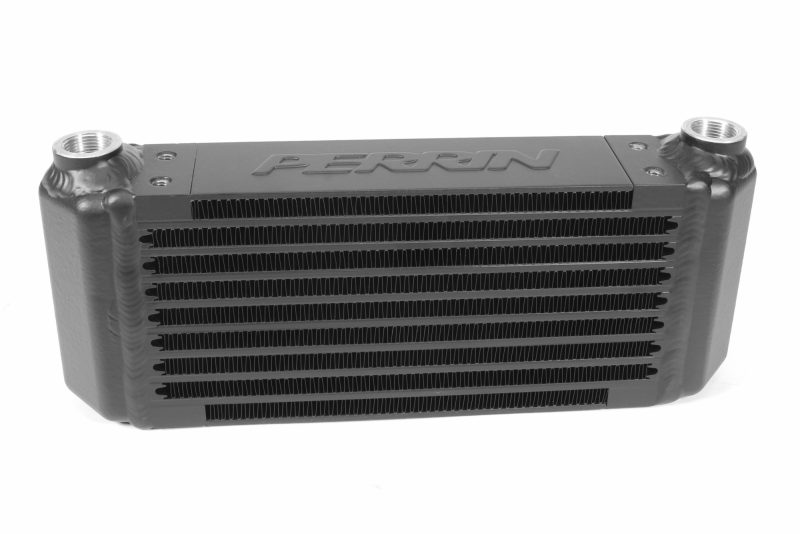

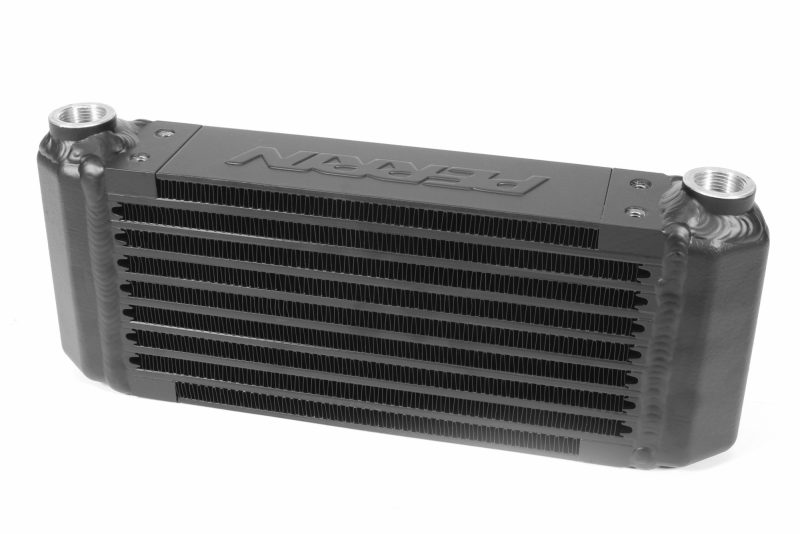

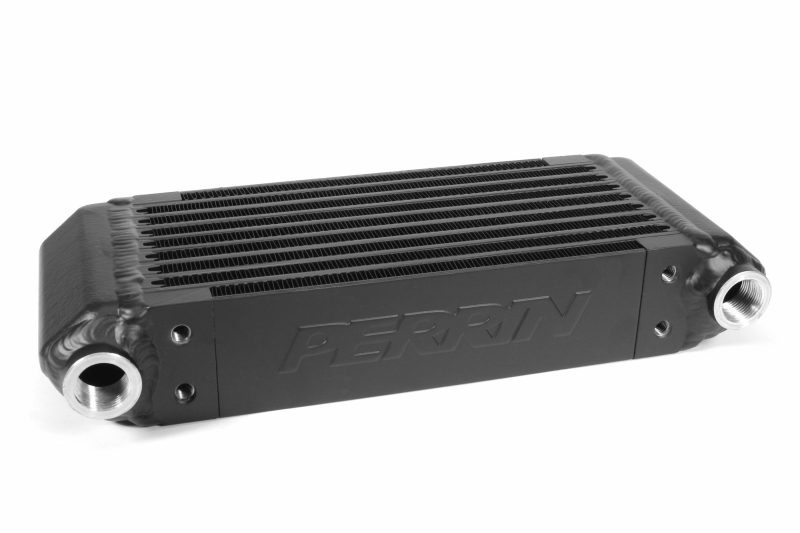

Bar and Plate Core

Each PERRIN oil cooler uses a high-efficiency PERRIN bar and plate-style oil cooler core. This core design maximizes heat dissipation without restricting oil flow to ensure your engine is fed with full oil pressure. This bar and plate design is much stronger and withstands damage from normal road debris more efficiently than tube and fin type cores. The mounting holes and hose connection points are also more durable.

Integrated Thermostat

The PERRIN Filter Adapter features an integrated 85°C (185°F) thermostat. This means your oil will reach the optimum operating temperature of 85°C within the engine before it is released to the oil cooler.

Oil Spacer

In addition to a new OEM oil filter from Subaru, for 2013-2020 vehicles, we Include a PERRIN Oil Spacer to allow for easy installation of the thermostat-filter assembly.

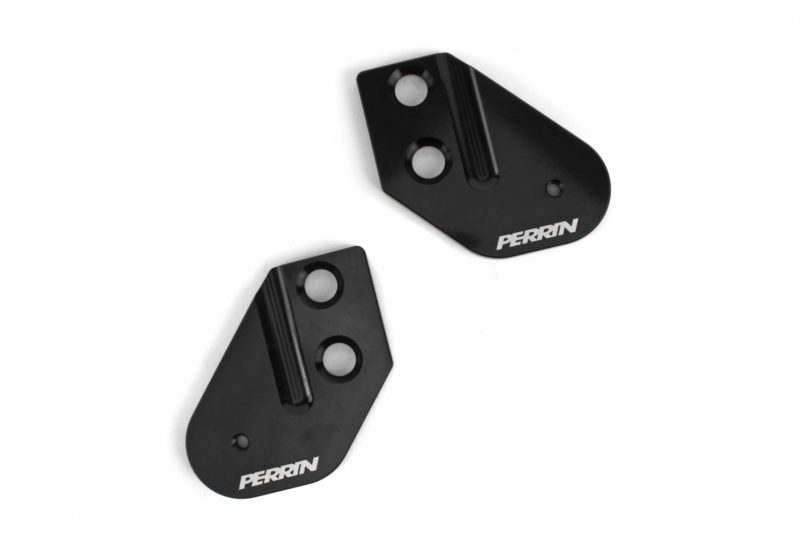

Mounting Brackets

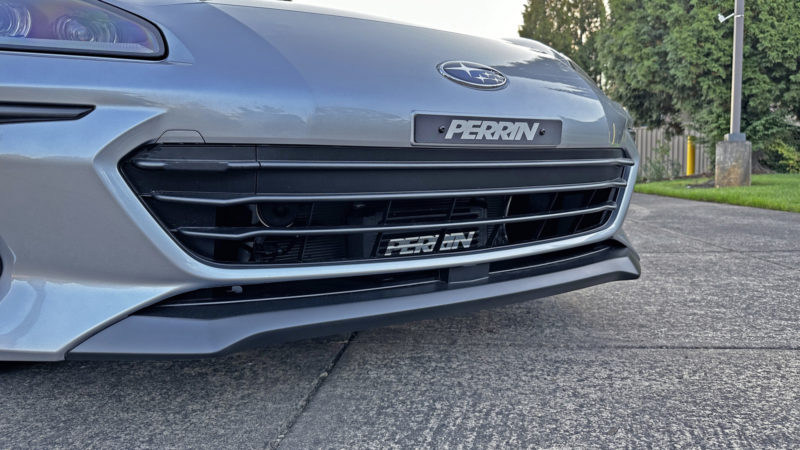

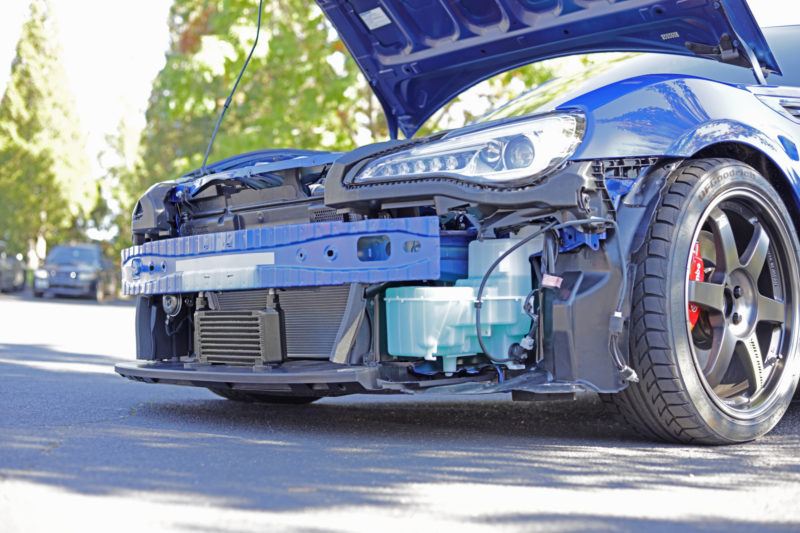

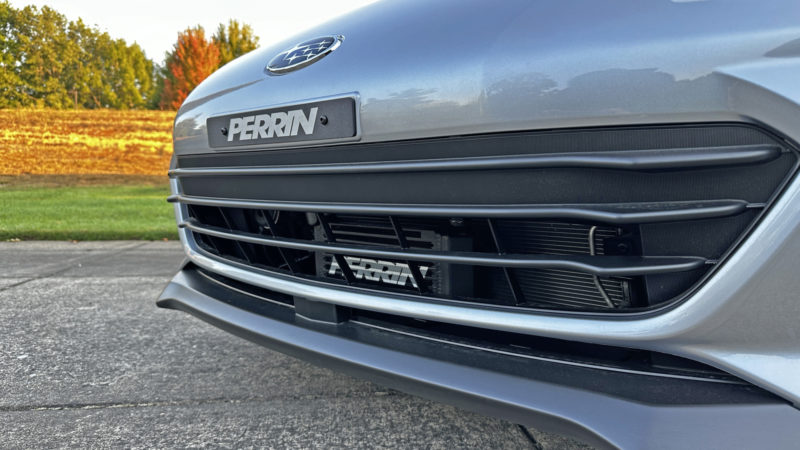

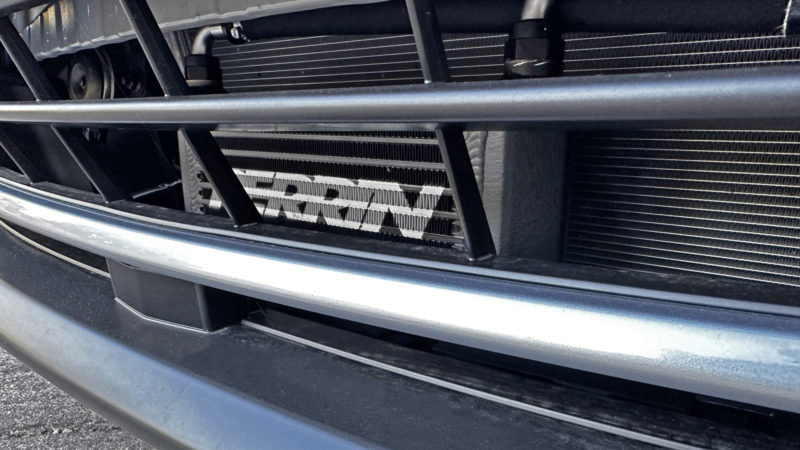

The PERRIN Oil Cooler comes with custom brackets that allow the oil cooler core to mount directly to existing holes in the OEM core support of your vehicle. Made from CNC machined 6061 T6 aluminum, the brackets look sleek and stylish while blending seamlessly behind your bumper.

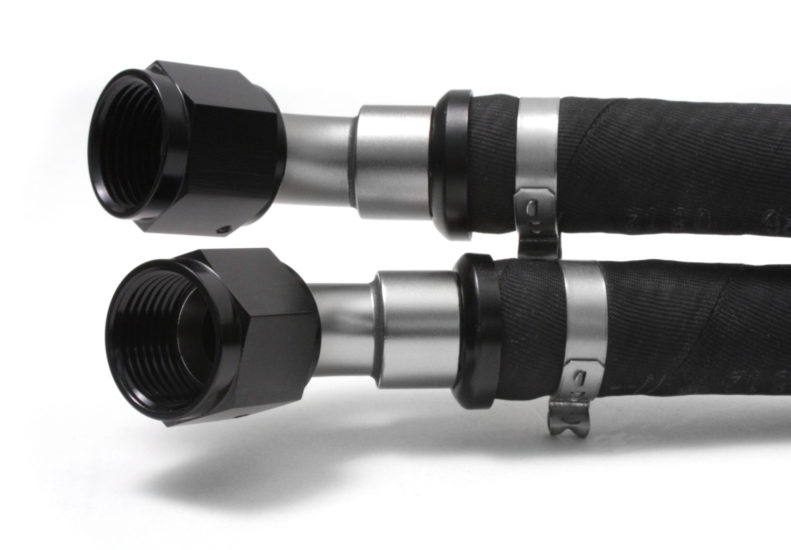

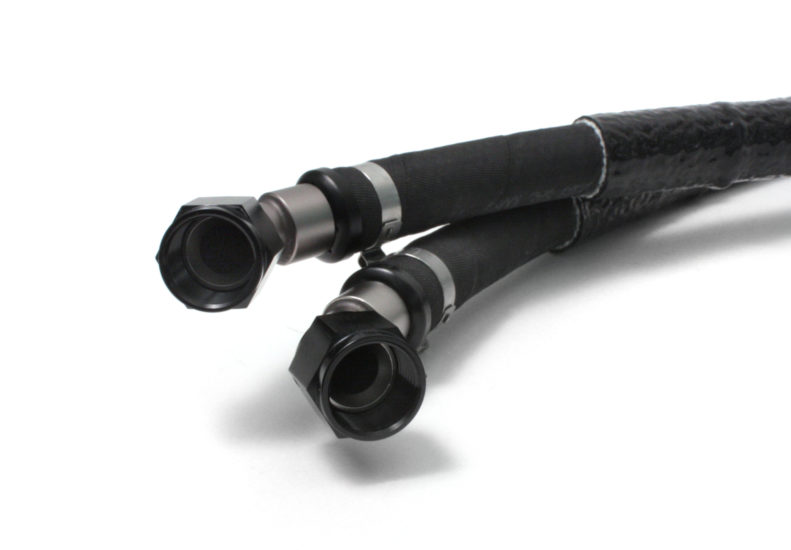

Preassembled Hoses

Full PERRIN Oil Cooler Kits feature lightweight Aeroquip brand -10 hose that are rated for 250psi and 300°F continuous temperature. Each hose comes pre-assembled and wrapped with our Industrial grade Pyrojacket that can withstand continuous exposure to 500° F (260°C) and up to 2000°F (1090°C) for 15-20 minutes.

Product Details

  • Oil Cooler Core Dimensions 9.5" x 4.75" x 2.2"
  • Core Delta PSI 3.0/3.5 PSI
  • Core BTU/hr Range 22,000-29,000
  • Additional Oil Required 1 quart
  • Mounting Brackets 6061 T6 aluminum
  • Filter Spacer 6061 T6 Aluminum
  • Oil Cooler Thermostat 85°C Activation Temp
  • Hose Size -10
  • Hose Construction AQP Elastomer Tube, Textile Braid Reinforcement, AQP Elastomer Cover

PSP-OIL-113

  • (1) PERRIN Oil Cooler Core
  • (1) PERRIN Oil Filter Spacer
  • (1) Thermostat Oil Filter/Cooler Adapter
  • (1) M20 Threader Adapter
  • (1) Long High-Pressure Hose
  • (1) Short High-Pressure Hose
  • (2) PERRIN Oil Cooler Mounting Brackets
  • (2) 1.25" OD Fender Washers
  • (2) M6x50 Socket Cap Screws
  • (4) M6x15 Button Head Bolts
  • (15) Zip ties
  • (1) PERRIN License Plate Frame
  • Warranty & Instructions

PSP-OIL-114

  • (1) PERRIN Oil Cooler Core
  • (1) Thermostat Oil Filter/Cooler Adapter
  • (1) M20 Threader Adapter
  • (1) Long High-Pressure Hose
  • (1) Short High-Pressure Hose
  • (2) PERRIN Oil Cooler Mounting Brackets
  • (2) M6x16 Socket Cap Screws
  • (4) M8x14 Flat Head Screws
  • (2) M8 Fender Washers
  • (2) M6x18 Fender Washers
  • (15) Zip ties
  • (1) PERRIN License Plate Frame
  • Warranty & Instructions

NOTE:

* Please note, 2017-2020 BRZ & 86 Manual with OEM intake requires slight modification to air box

  • 2013 Subaru BRZ
  • 2014 Subaru BRZ
  • 2015 Subaru BRZ
  • 2016 Subaru BRZ
  • 2017 Subaru BRZ
  • 2018 Subaru BRZ
  • 2019 Subaru BRZ
  • 2020 Subaru BRZ
  • 2022 Subaru BRZ
  • 2023 Subaru BRZ
  • 2024 Subaru BRZ
  • 2025 Subaru BRZ
  • 2013 Scion FR-S
  • 2014 Scion FR-S
  • 2015 Scion FR-S
  • 2016 Scion FR-S
  • 2022 Toyota GR86
  • 2023 Toyota GR86
  • 2024 Toyota GR86
  • 2025 Toyota GR86
  • 2017 Toyota 86
  • 2018 Toyota 86
  • 2019 Toyota 86
  • 2020 Toyota 86
5 Year Warranty
5 Year Warranty

PERRIN Performance warrants to the original purchaser that all PERRIN products will be free from defects in material and workmanship within a sixty (60) month period from the date of purchase. *Some exclusions apply

Proposition 65

warning.pngWARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov

Estimated DIY Install Time: 2 hours
Email Our Tech Department: [email protected]
Download Instructions
Psp Oil 113 01
Gallery

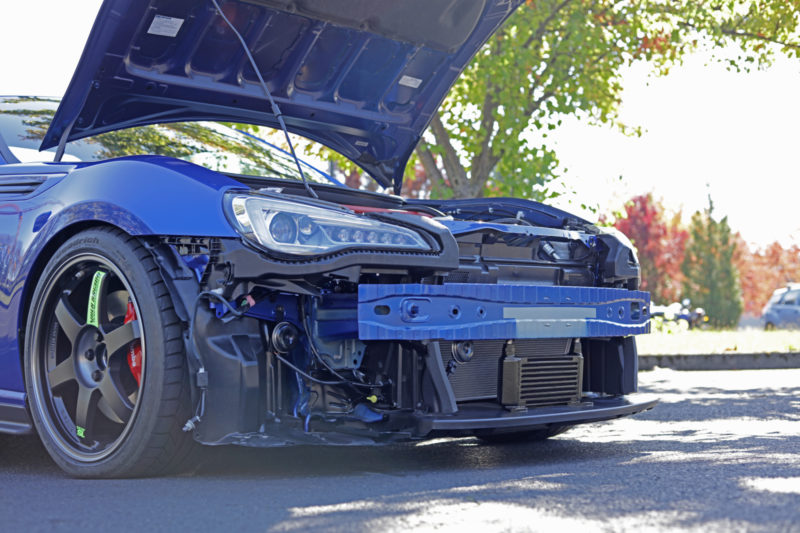

Installation Gallery
